Main features:

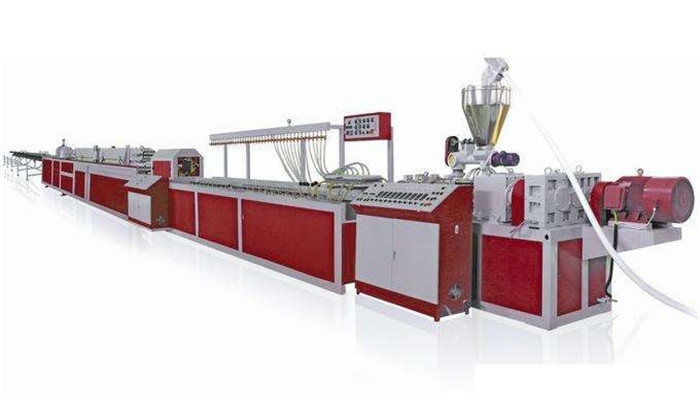

PC/PE/PP/PVC/ABS/PA Profile Extrusion Line has equipped with double-cone or flat twin-screw extruder, can process PVC plastic door and window profiles, aluminum-plastic composite profiles, and special cables porous threading pipe, decorative profiles and so on. Performance and advantages: adopt the latest foreign technology, to optimize the design unit, with plasticizing uniform a smal shear rate, high output, long life and so on. The unit has conical twin-screw extruder, vacuum shaping table, traction machine, cutting machines, foil machines, stacker and so on. Host imported AC frequency or DC speed drag, temperature control instruments adopted Japanese RKC product. Auxiliary vacuum pump and traction motors are used high-quality product sand maintenance is simple, after replacing the screw barrel and die, you can directly extruder wood foam profile. the results is better than the single screw.

Main technical parameters：

Model	Product range(mm)	Max yield(kg/h)	Max speed(m/min)	Total power(kw)	Line lengthm(M)
XSSJ-100	100*50	100	0.6-1.5	80	22
XSSJ -150	100*50	150	0.6-1.5	80	22
XSSJ -250	250*120	250	0.6-1.5	120	26
XSSJ -450	450*120	250	0.6-1.5	120	26
