Heating/cooling mixing unit, SRL-Z Series
- Characteristics： SRL-Z Series Mixer units are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is
- Email:sales@sincere-extruder.com
Details
Characteristics：

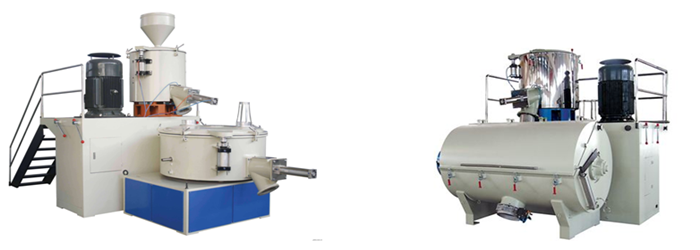

SRL-Z Series Mixer units are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning.
Main Technical parameter：
| SRL-Z | Heat/Cool | Heat/Cool | Heat/Cool | Heat/Cool | Heat/Cool |
| Total volume (L) | 100/200 | 200/500 | 300/600 | 500/1250 | 800/1600 |
| Effective capacity (L) | 65/130 | 150/320 | 225/380 | 330/750 | 600/1050 |
| Stirring speed (RPM) | 650 /1300/200 | 475/950/130 | 475/950/100 | 430/860/70 | 370/740/50 |
| Mixing time (Min.) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
| Motor power (KW) | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
| Overall dimension(mm) | 1950*1600*1800 | 4580*2240*2470 | 4800*2640*2480 | 5600*3000*3100 | 5170*3200*4480 |
| Weight(kg) | 2200 | 3400 | 3600 | 6500 | 9800 |
Enquiry：Heating/cooling mixing unit, SRL-Z Series
