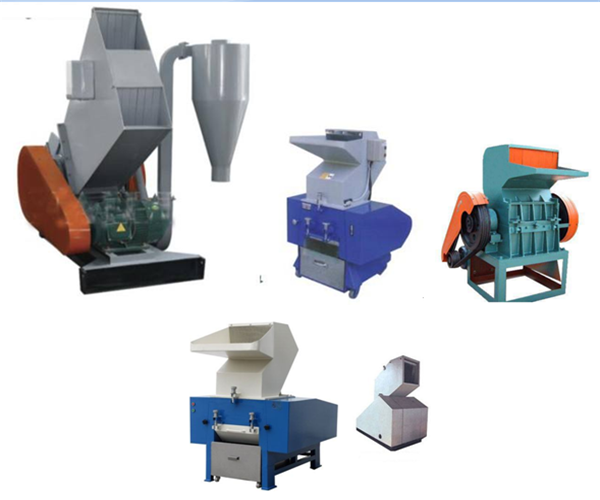

Crushers SWP Series
- The SWP series plastic crusher is mainly used for crushing plastic and rubber products: SWP100, SWP160, SWP200, SWP300, SWP320 are mainly used for crushing film, yarn, block, rod, pipe and profile, etc. SWP260, SWP360 are mainly used for cr
- Email:sales@sincere-extruder.com
Details
The SWP series plastic crusher is mainly used for crushing plastic and rubber products:
SWP100, SWP160, SWP200, SWP300, SWP320 are mainly used for crushing film, yarn, block, rod, pipe and profile, etc.
SWP260, SWP360 are mainly used for crushing block, rod, container, etc.
SWP450, SWP630 are mainly used for crushing pipe, profile, rod, plate, sheet, board strip, etc.
SP-120, SP-250 are mainly equipped with small power injection machine, used for crushing the leftovers of the injection machine.
SWP650, SWP800, SWP1000 are mainly used for crushing beer cases, buckets, and such hollow containers.
We also produce artificial marble crusher.
Model | Rotating knife dia.(mm) | Rotating knife quantity (pcs) | Fixed knife quantity (pcs) | Hole dia. of sieve (mm) | Particle size (mm) | Capacity (kg) | Power (kw) | Overall dimension (mm) | Total weight (kg) |
SWP100 | 100 | 2 | 2 | 3-5 | 2-4 | 50 | 1.5 | 600×400×800 | 120 |
SWP160 | 160 | 3 | 2 | 6-10 | 4-8 | 100-150 | 3 | 790×600×1175 | 300 |
SWP200 | 200 | 3 | 2 | 6-10 | 4-8 | 100-200 | 4 | 800×640×1450 | 300 |
SWP260 | 260 | 3 | 2 | 6-10 | 4-8 | 100-200 | 4 | 800×1000×1200 | 200 |
SWP300 | 300 | 3 | 2 | 6-10 | 4-8 | 200-300 | 11 | 1245×880×1720 | 660 |
SWP2232 | 220 | 12 | 2 | 6-10 | 4-8 | 200-250 | 5.5 | 1000×800×1200 | 360 |
SWP360 | 360 | 3 | 2 | 6-10 | 4-8 | 350-400 | 11 | 1600×1100×1400 | 750 |
SWP380 | 380 | 15 | 2 | 8-12 | 8-10 | 200-500 | 15 | 2180×1020×1810 | 1200 |
SWP450 | 450 | 9 | 2 | 6-10 | 6-8 | 250-400 | 22 | 2080×1500×2120 | 1480 |
SWP500 | 500 | 35 | 4 | 12 | 6-9 | 700-800 | 30 | 2535×1590×3000 | 3000 |
SWP630 | 630 | 60 | 4 | 12 | 6-9 | 700-800 | 30 | 1900×1500×3500 | 6500 |
SWP800 | 800 | 10 | 4 | 12 | 6-8 | 800-1000 | 55 | 1000×1500×3500 | 6500 |
SWP3040 | 280 | 15 | 2 | 8-10 | 8-10 | 200-300 | 7.5 | 1000×1200×1030 | 450 |
SWP120 | 120 | 8 | 2 | 6 | 6 | 50 | 0.75 | 600×760×1030 | 100 |
SWP250 | 250 | 8 | 2 | 6 | 6 | 80 | 2.2 | 1000×900×1100 | 180 |
