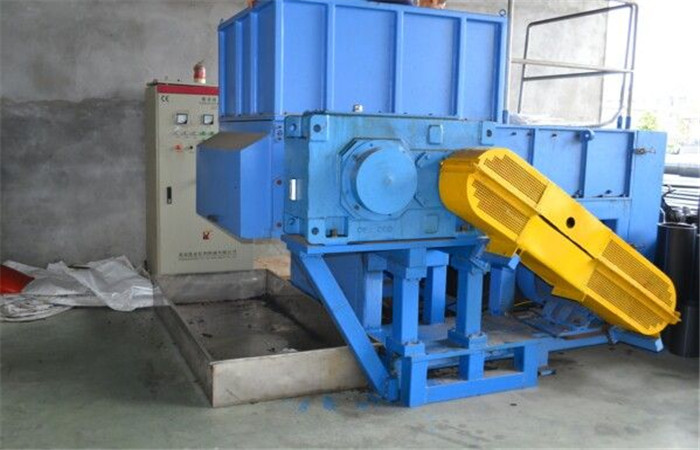

Single shaft shredder
- Model Cutter diameter（mm） Crusher room Capacity（kg|h） Power（kw） Overall dimension(mm)（mm） Weight（kg） DZ-600 260 600*550 300-5000 15 1800*1300*1700 2850 DZ-800 300 800*600 500-800 37 2800*1800*2100 4200 DZ-1000 350 1000*7
- Email:sales@sincere-extruder.com
Details
| Model | Cutter diameter（mm） | Crusher room | Capacity（kg|h） | Power（kw） | Overall dimension(mm)（mm） | Weight（kg） |
| DZ-600 | 260 | 600*550 | 300-5000 | 15 | 1800*1300*1700 | 2850 |
| DZ-800 | 300 | 800*600 | 500-800 | 37 | 2800*1800*2100 | 4200 |
| DZ-1000 | 350 | 1000*700 | 800-1500 | 45 | 2800*2000*2100 | 6500 |
| DZ-1200 | 400 | 1200*900 | 1500-2500 | 55 | 2800*2500*2100 | 7800 |
| DZ-1400 | 450 | 1400*900 | 2500-4000 | 75 | 2800*2800*2100 | 9600 |
| DZ-1600 | 500 | 1600*1000 | 4000-6000 | 90 | 3000*2800*2100 | 12500 |
Enquiry：Single shaft shredder
