Plastic PVC Pipe Extrusion Machine
2017-06-30
Basic Info
-
Model NO.: pipe extruder
-
Screw No.: Double-screw
-
Computerized: Computerized
-
Customized: Customized
-
Pipe Diameter: 16-400mm
-
Total Installed Powder: 90kw
-
Trademark: Zhaoxing
-
Origin: China
-
Product Type: PVC Pipe
-
Automation: Automatic
-
Certification: ISO9001:2008
-
Condition: New
-
Max Capacity: 250kg/H
-
Guaranteed Time: 12 Months
-
Specification: Customized
-
HS Code: 8477209000
Product Description
1. GENERAL DESCRIPTION

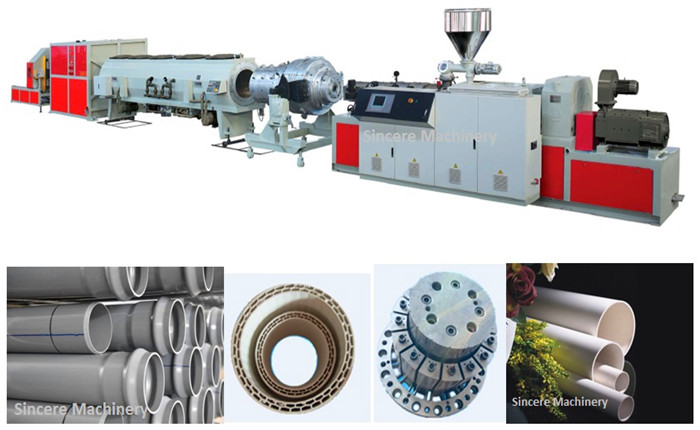

PVC Plastic Pipe Making Extrusion Machine
This machine is mainly used to produce agricultural water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. This unit adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
2. DETAILED FEATURES
1. Conical twin screw extruder:
using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.
2. Mould:
spiral type die head can not only ensure high speed extrusion, but also avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.
3. Spraying and cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.
4. Haul off machine:
adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.
5. Cutting machine:
precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

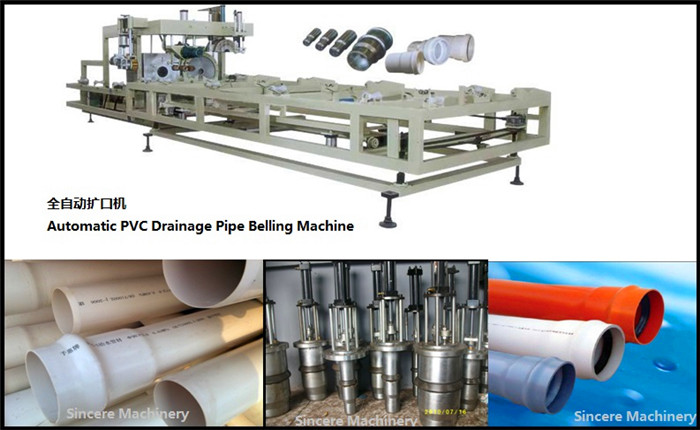

6. Pipe belling machine:
automatic pipe belling machine comes with 2 heating ovens to ensure pipe belling quality and productivity.
3. PACKAGE AND SHIPMENT
4. OUR SERVICE
By 2017 our factory have 14 years of experience of plastic extruders, for over 14 years our strong point are to design and manufacture efficient, durable and easy to use equipment. Now we have a professional technical team to support our products' update, pre-sales and after-sales service. "Clients first" are our very principle.
* Inquiry and consulting support.
* Equipment pre-commissioning& testing support.
* View our Factory.
After-Sales Service
* Machinery warranty time is 12 months starting from the date of Bill of Lading. Electric and electronic parts excluded.
* Training how to install the machine and how to use the machine.
* Engineers available to service machinery overseas.
PVC Plastic Pipe Making Extrusion Machine
This machine is mainly used to produce agricultural water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. This unit adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
| Compulsory devices | ||||
| 1 | Spring feeding machine | 1 set | ||
| 2 | Conical twin screw extruder SJ-65/132,80/156 | 1 set | ||
| 3 | Pipe die head | 16-400mm | ||
| 4 | Vacuum calibrating tank | 1 set or several sets | ||
| 5 | Water spraying cooling tank | 1 set or several sets | ||
| 6 | 2-3-4-6-8-10-12 caterpillars hauling off machine | 1 set | ||
| 7 | Saw cutting machine or planetary cutting machine | 1 set | ||
| 8 | Pipe stacker-6000mm length | 1 set | ||
| 9 | Electrical cabinet(ABB,Omron,RKC,Schneider etc) | 1 set | ||
| 10 | Spare parts | 1 set | ||
| Optional Devices | ||||
| 1 | High speed hot and cold mixer | 1 set | ||
| 2 | Plastic crusher | 1 set | ||
| 3 | Plastic pulverizer | 1 set | ||
| 4 | Industrial water chiller | 1 set | ||
| 5 | Air compressor | 1 set | ||
| 6 | Thermocontroller for die head | 1 set | ||
| 7 | Ink jet printer | 1 set | ||
| Payment, delivery and after sales services | ||||
| 1 | Payment terms | 30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable | ||
| 2 | Delivery time | 60 days after receipt of prepayment | ||
| 3 | Packing method | Wooden cases/pallets with stretching films | ||
| 4 | Guaranteed time | 12 months | ||
| 5 | After sale service | Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable | ||
| 6 | Contact | Ekaterina ( Wechat/WhatsApp/Skype:+8615726275773 ) | ||
| Model/data | Pipe diameter | Extruder model | speed | Max capacity | Total power | Dimension | weight |
| ZXCG63 | 16-63mm | LSZ51/105 | 1-10m/min | 120kg/h | 45kw | 30*1.8*2m | 9t |
| ZXCG160 | 75-200mm | LSZ65/132 | 1.5-5m/min | 260kg/h | 80kw | 36*2*2m | 16t |
| ZXCG400 | 200-400mm | LSZ80/156 | 0.5-1.5m/min | 400kg/h | 115kw | 37*2*2m | 23t |
| ZXCG630 | 400-630mm | LSZ92/188 | 0.1-0.8m/min | 650kg/h | 200kw | 48*2.5*2.5m | 30.5t |
2. DETAILED FEATURES
1. Conical twin screw extruder:
using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.
2. Mould:
spiral type die head can not only ensure high speed extrusion, but also avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.
3. Spraying and cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.
4. Haul off machine:
adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.
5. Cutting machine:
precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.
6. Pipe belling machine:
automatic pipe belling machine comes with 2 heating ovens to ensure pipe belling quality and productivity.
3. PACKAGE AND SHIPMENT
4. OUR SERVICE
By 2017 our factory have 14 years of experience of plastic extruders, for over 14 years our strong point are to design and manufacture efficient, durable and easy to use equipment. Now we have a professional technical team to support our products' update, pre-sales and after-sales service. "Clients first" are our very principle.
Qingdao Sincere Machinery Co.,Ltd, situated on the prosperous Jiaozhou bay, is exclusively specializing in designing and manufacturing a great variety of plastic machinery. With national top scientific manpower, our company is engaged in the researching of late-model plastic machinery, the conversion of the international advanced technology and cooperation with the research institutes and universities to provide plastic machinery with high performance and high technology.
Pre-Sales Service* Inquiry and consulting support.
* Equipment pre-commissioning& testing support.
* View our Factory.
After-Sales Service
* Machinery warranty time is 12 months starting from the date of Bill of Lading. Electric and electronic parts excluded.
* Training how to install the machine and how to use the machine.
* Engineers available to service machinery overseas.
