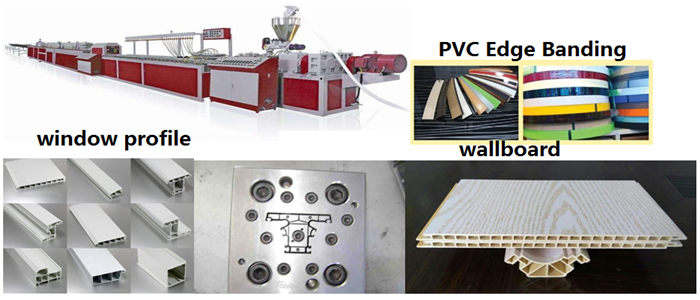

This line can be used to produce pvc doors, windows profiles, Ceiling panel, wall Panel.
The PVC profile extrusion line is equipped with conical twin-screw extruder. The production line has many advantages: material thawing even, small shear rate, high output, long service life, etc. The production line includes extruder, calibrator unit, haul-off unit, film-coating machine, stacking unit, etc. Surface treatment equipment:
Thermal transfer, Laminating machine.Two - color printing pressesing machine.

This PVC profile extrusion line can also be used as PVC wood composite (WPC) foaming profile extrusion line.
PVC wood foaming profile extrusion line: equipped with specially designed screw, barrel, die-head and axiliary machines, using advanced procesing technique. The profile is a new environmental friendly product, material mixed plastic, wood and appropriate aditives. It is widely used for product carrier, packaging box, frame of window & door, decorating board and other outdoor products.

The main technical data:

Model	Extruder	Makc. width	Total power of auxiliary machine	Cooling water capacity	Traction speed	Capacity
SJSZ51/105	SJSZ51/105	180mm	16kw	6	1-8m/min	100KG/H
SJSZ65/132	SJSZ65/132	240mm	28kw	6	1-6m/min	200KG/H
SJSZ80/156	SJSZ80/156	300mm	32kw	9	1-8m/min	350KG/H
