The use:

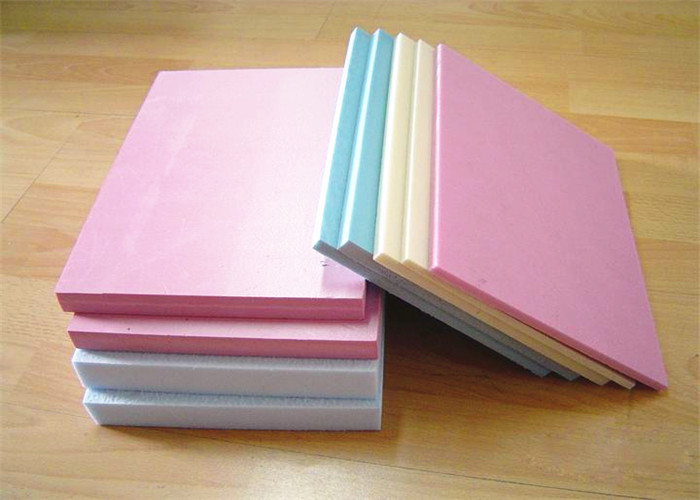

XPS foam sheet in Europe and the United States is a very common insulation materials, especially adapted to the use of inverted roof insulation process (up-set down) roof insulation system and inside and outside the wall insulation system, to warm insulation, roads, railways , The airport, the square of the antifreeze insulation, home decoration and other fields. The product is suitable for roof insulation, regardless of insulation effect, the construction of the simple, total cost, life and so on more advantages than the traditional perlite, for the new environmentally friendly energy-saving materials, is currently recognized on the market the best insulation material.

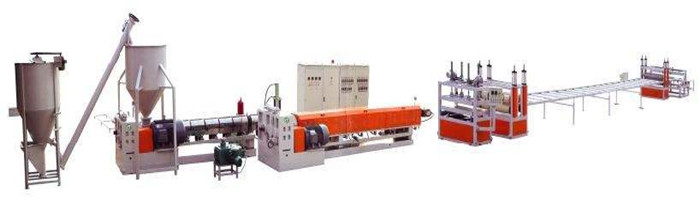

This equipment component:
1. Mixing Feeding System 2. Primary Extrusion System 3. Foaming Agent Injection System 4. Hydraulic Wire Mesh System 5. Secondary Extrusion System
6. Extrusion die, styling system 7. Transmission conveying cooling system 8. Traction system 9. Cutting system 10. Control system

Model	JG-XPS135/150			JG-XPS170/200		JG-XPS75P/150		JG-XPS139/156 (CO2)
Extruder	Ø135/32	Ø150/34		Ø170/28	Ø200/32	Ø75平双	Ø150/42	Ø139/32	Ø156/36
Heating power(kw)	50	52		78	100	80	65	70	100
Motor (kw)	75	55		90	90	75	55	90	90
Product thickness (mm)	20,25,30,40,50,60, 75,100			40,50,60,75,100, 120		20,25,30,40,50,60,75,100		20,25,30,40,50
Product width (mm)	600, 900, 1200			600, 900, 1200		600, 900, 1200		600
Product length (mm)	1200, 1250, 2450, 2500
Capacity(kg|h)	320		380-500			450		250-400
Total power(kw)	260		400			290		300
Diamension(M)	40 × 10 × 4		50 × 12 × 4			42 × 9 × 4		45 × 10 × 4
Weight (T)	26		33			28		30
