The Use:

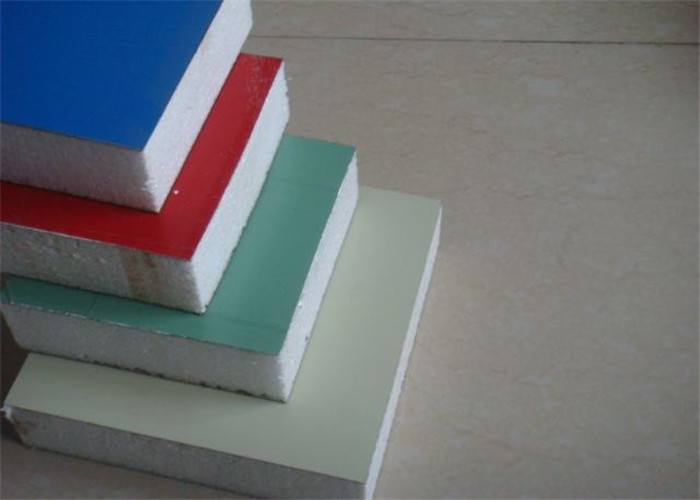

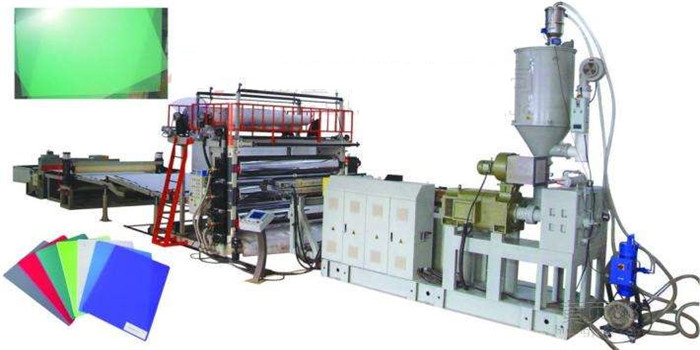

The unit is mainly used for the production of EPS foam sheet (KT board), polystyrene as raw material, in the extrusion process of high pressure injection of blowing agent, the die extrusion foam, cooling, stereotypes, cutting, Winding to complete the whole process of product production. It is widely used in the packaging of food, fruit, electronics, daily necessities, hardware and toys, and so on. It is widely used in food, fruit, electronics, daily necessities, hardware and other products.

The characteristics:
1, the production line using advanced two-stage series of foam technology, stable performance, simple operation.
2, screw, barrel made of 38CrMoALA nitrided steel, improve the service life of the screw.
3, the use of infrared energy-saving heaters, intelligent digital automatic temperature controller temperature control, high efficiency and low consumption.
4, drive the use of variable frequency control, high precision, wide range, low energy consumption, reliable operation.

Main technical parameters：

Model extruder	PS-65/90	PS-80/100	PS-90/120	120/150
Diameter screw(mm)	Ф65/90	Ф80/100	Ф90/120	Ф120/150
Capacity (kg/h)	50-80	80-120	150-180	200-260
Installed capacityKW	60	100	120	160
Product thickness (mm)	1-3	1-4	1.5-4	2-4
Product width (mm)	1040	1280	1280	1280
Cooling method	water cooling, air-cooled	water cooling, air-cooled	water cooling, air-cooled	water cooling, air-cooled
Water consumption (T/h)	3	4	5	8
Machine weight (T)	8	12	14	16
Size（m）	25×3×3	30×3.5×3	35×4×3	38×4.5×3
