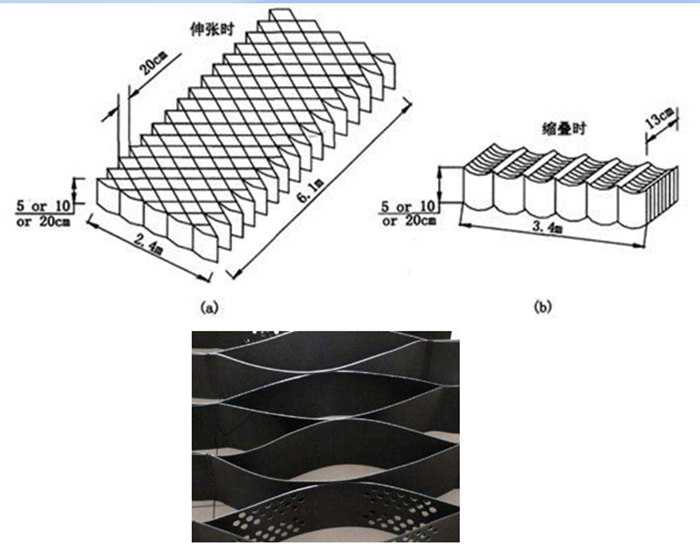

Geocell is a high-strength thermoplastic sheet, after a strong welding and the formation of a grid cell structure. It can be used as a cushion, increase the carrying capacity of weak foundation, can also be laid on the slope to form a slope protection structure, can also be used to build the retaining structure.

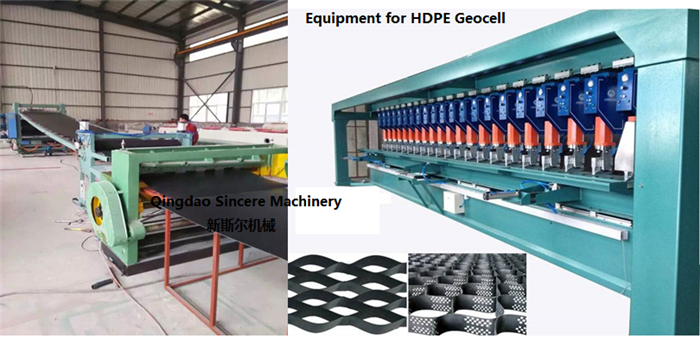

The plastic extruder production line consists of an extrusion system, a drive system and a heating and cooling system. Ultrasonic plastic welding machine combination, the use of imported PLC control, touch screen display and parameter settings, the output strong and stable, high degree of automation.

螺杆直径Screw diameter	Ф65，Ф75, Ф90, Ф120, Ф150мм
L|D	33:1,   35:1,   38:1
主要电机功率Main engine power	75-350kw
片材厚度Thickness of sheet	0.2-2mm
片材宽度Width of sheet	400-2000mm
产量Productivity	150-1000kg/h
装机功率Installed capacity	150-420kw
