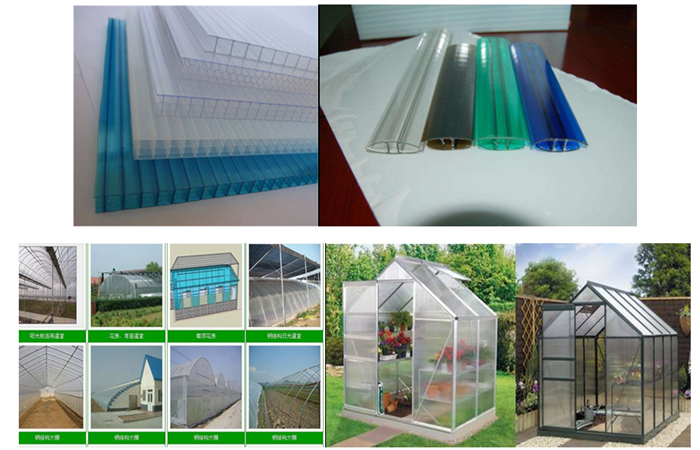

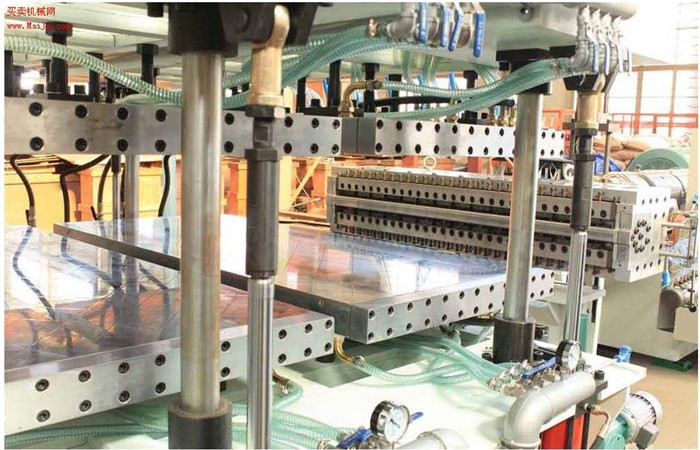

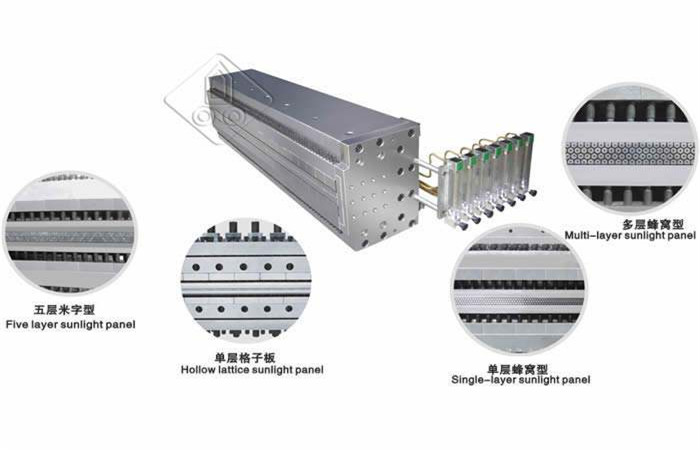

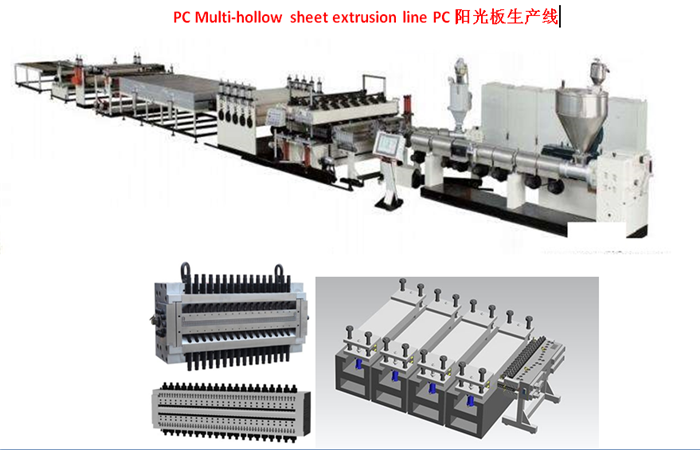

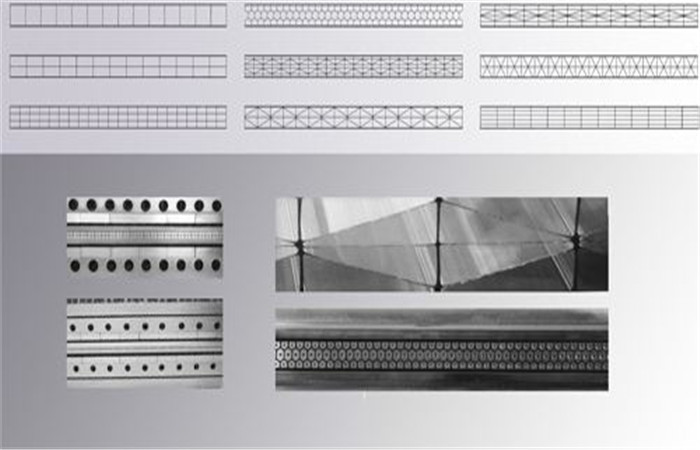

PC hollow board production line is also commonly known as the PC hollow board production line, the Cablon production line, mainly by the extruder, mold, stereotypes Taiwan, traction machine, tempering stove, horizontal cutting machine, belt conveyor, electrical control system and other components. The equipment is used for the production of PC hollow board products. The production line using high-speed energy-saving stable screw, the output compared to similar products increased by 25% or more; special design stereotypes device, the district alone control; a specific temperature control device to reduce heat shrinkage, simple operation; traction roller can be customized to increase the extension; Different requirements of single-sided double-sided increase UV layer; unique design mold, wall structure and diverse, wall thickness can be customized.

  PC hollow board production line, the host for the 120 extruder, can be extruded with 45 extruder, 45 main main squeeze 'UV' raw materials, play the role of outdoor use of UV, the general production line to make the thickness of the sun plate 4,6,8,10,12,14mm. You can choose single-sided UV (AB) or double-sided UV (ABA) layer structure.

Main technical parameters:

主挤出机直径Diameter screw extruder	120mm
长径比 L|D	35：1
电机功率 Motor	185kw
共挤挤出机直径Diameter screw co-extruder	45mm
长径比L|D	30：1
电机功率Motor	15kw
板材厚度范围Plate thickness range	4－30mm
宽度范围Width range	2100mm
产量output	>300kg/h
实际消耗功率Actual consumption of power	200kw
