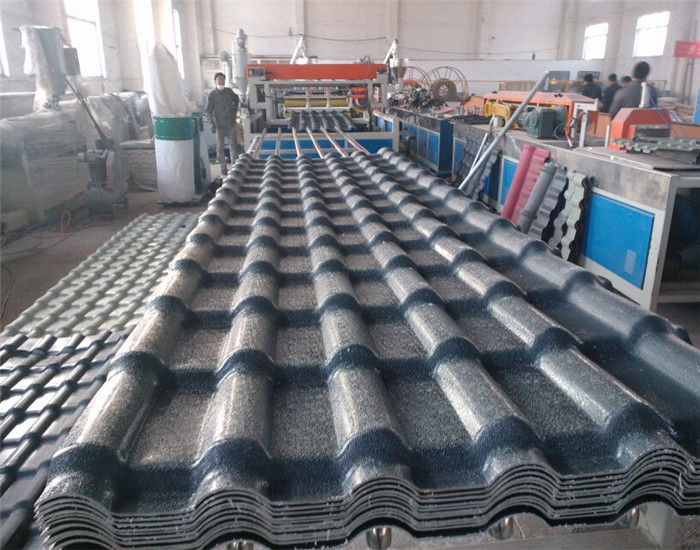

PVC glazed roof tile is widely used in pavilions, hotels, exhibition halls, resorts, families and other buildings. PVC glazed roof tile has a series of advantages: Weather resistance, Corrosion resistant performance, excellent load capacity, Shock resistant and low temperature resistant, Self clean and so on.

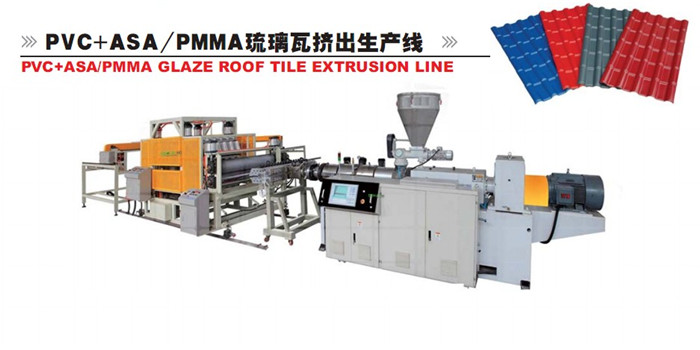

PVC glazed roof tile extrusion line consists of an extruder, a T-die and a downstream molding unit, which continuously extruds a single layer of PVC glazed tiles, PVC / PMMA and PVC / ASA multilayered glazes.



PVC glazed roof tile molding machine mainly by the rack, the upper and lower wall panels, forming modules, power systems, cooling systems, electrical control systems and other components.

PVC glazed roof tile extrusion production line advantages:
1, high production efficiency.
2, the structure is reasonable and compact.
3, easy operation and maintenance

Main Technical Specifications:

Extruder	SJZS-80/156	SJ50/30
Productivity	350kg/h	50kg/h
Haul-off power	20KN
Haul-off speed	0.3~5m/min

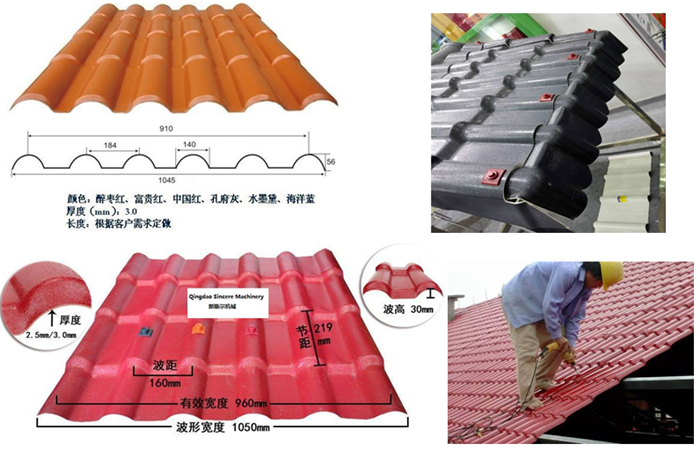

Product specifications (Can be produced according to customer requirements)	Width title:720/880/960/1040mm   Pitch:160mm wave length:220mm wave height:30mm Thickness:1~3mm
