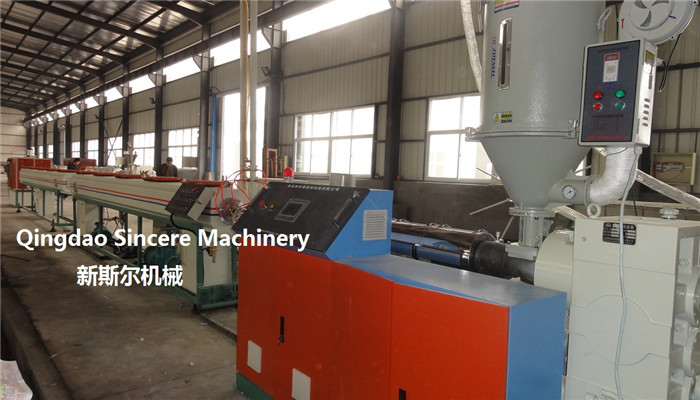

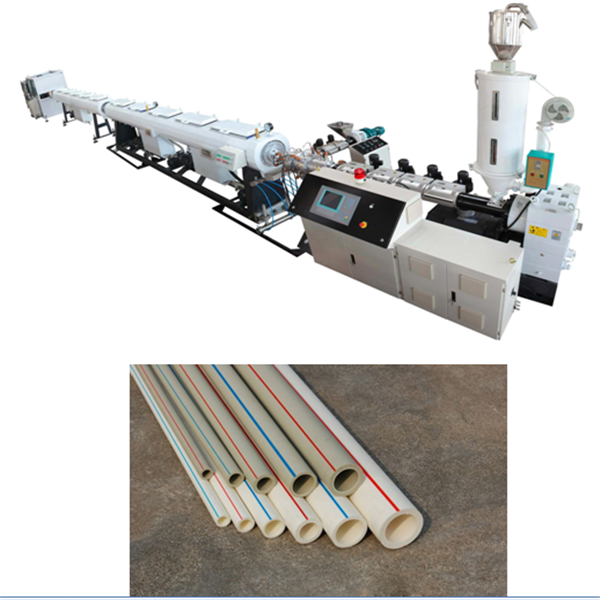

This PPR Cold/Hot Water Pipe line is mainly used for producing PPR cold/hot water pipe or PE, PP, PERT, ABS pipe.

Production line features:
High efficiency extruder is designed for PPR pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, varying pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.
Vacuum calibration and spray water cooling tank made of stainless steel ensures precise calibration and fast cooling.
Adopts multi claws haul-off unit, speed adjusted by frequency inverter.
Equipped with planetary cutter. Be able to cut large diameter and thick wall pipe.

Main Technical Specifications:

Model	XSP-20-63	XSP-75-110
Main extruder	XSSJ-50*33	XSSJ-65*33
Assistant extruder	XSSJ-30*25	XSSJ-30*25
Range of pipe dia. (mm)	Φ20-Φ63	Φ75-Φ110
Output (kg/h)	120	250
Production speed (m/min)	1-12	0.5-6
Installed capacity(kw)	80	160
Dimensions(L*W*H)(m)	32*2.5*2.8	40*2.5*2.8
