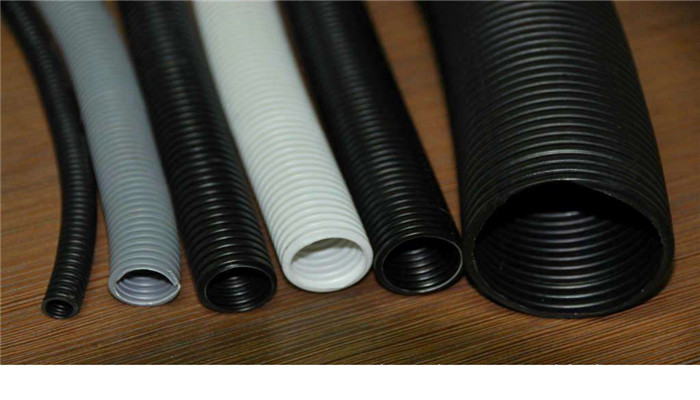

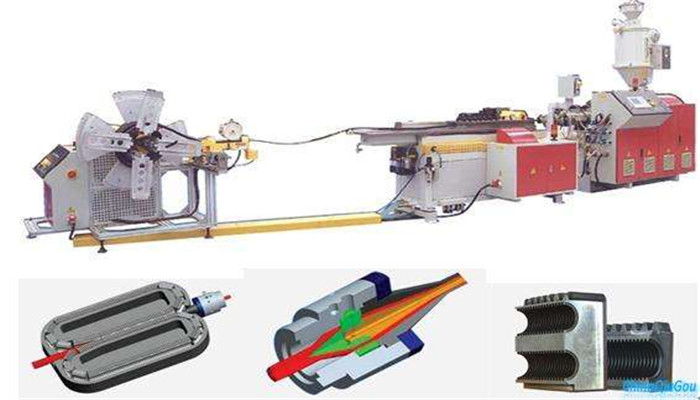

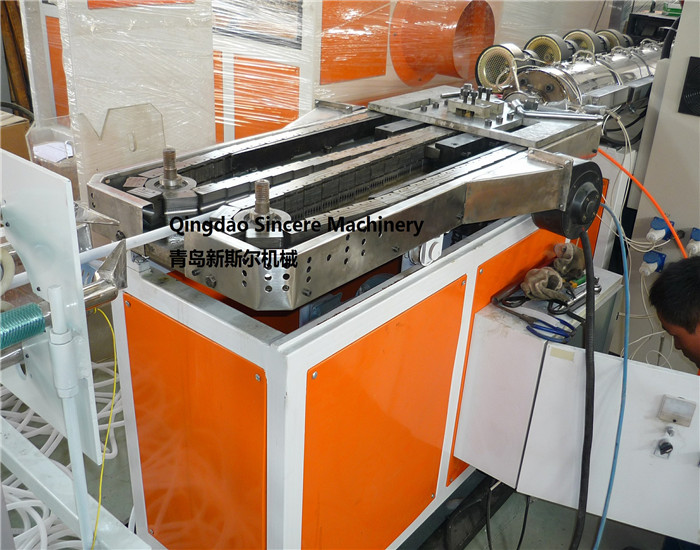

Using PVC, PE, or PP as a raw material, the single-wall corrugated pipe has excellent characteristics of corrosion resisting, anti-abrasion, high strength and flexibility, etc. It has been widely applied for cable protection, outlet tubes of washing machines, ventilating pipes of vacuum cleaner, and so on. Our single-wall corrugated pipe line has advantages of accurate forming, reliable performance, high speed and efficiency, and easy operation.The performance index reaches the leading level in the world.

Main technical parameters：

Model	XSDPEG-90	XSDPEG-65	XSDPEG-45	XSDPEG-30
Screw diameter (mm)	Φ90	Φ65	Φ45	Φ30
L/D	30/1	30/1	30/1	30/1
Output (kg/h)	200	100	40	20
Total power (kw)	120	80	50	20
Pipe dia. Range (mm)	Φ110-Φ200	Φ16-Φ75	Φ8-Φ50	Φ2-Φ15
Haul off speed (m/min)	10	10	15	15
Capacity annually (10km)	150	150	150	150
