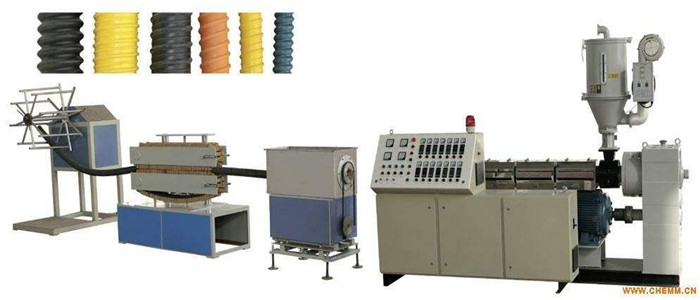

The PE Spiral Pipe Extrusion Line is composed by:
1. Extruder with feeding machine
2. Die head & mould
3. Spiral forming machine & vacuum calibration & water spray cooling trough
4. Haul off machine

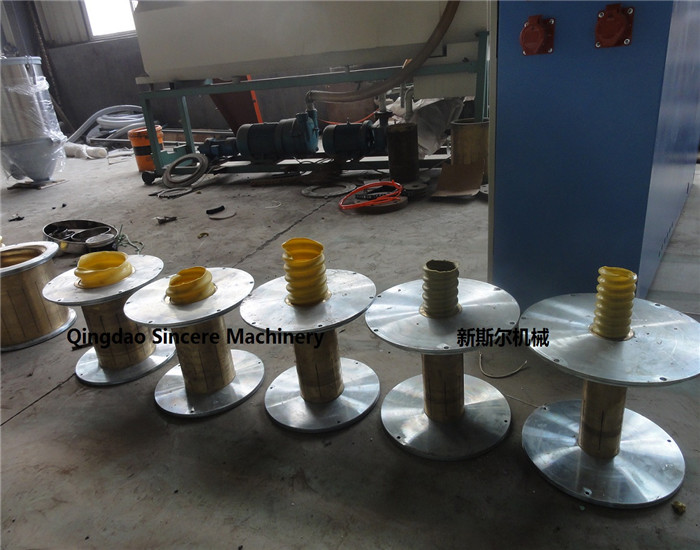

5. Winder for small diameter pipe, or cutter for big diameter pipe & unloading stacker

The PE Spiral Pipe Production Line has characteristics of compact conformation, comfortable operation, easy to maintain, high performance/price ratio. By adopting high performance extruder and automation system, it runs stably and produces high quality pipes.

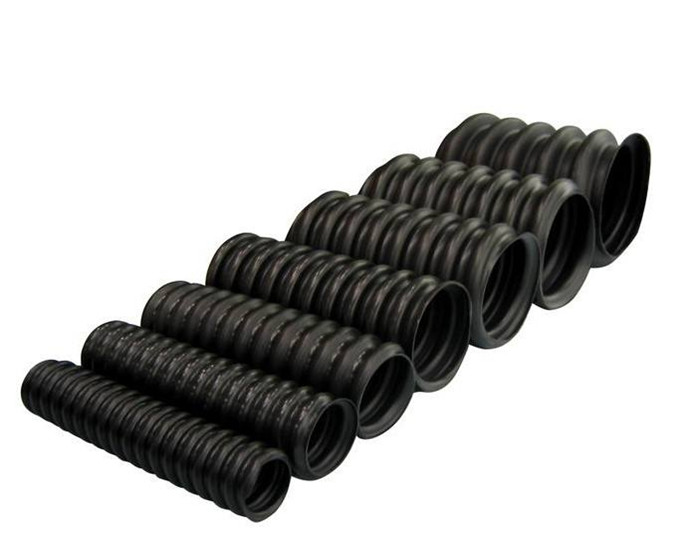

The PE Spiral Pipe Extrusion Line is mainly used for producing PE spiral pipe. This kind of pipe has characteristics of high strength, high toughness, anti-corrosion, light weight, long service life and anti-deformation; it is widely used in cable protection and vented exhaust. It is an ideal alternative of cast iron pipe, rubber pipe and PVC pipe. Widely used in road light, high way, bridge construction for cable/ electrical wire protection. It is usually buried under ground.

Main technical data：

Model	XSPE-C-125	XSPE-C-200
Extruder	XSSJ-65*33	XSSJ-65*33
Pipe dia.(mm)	Φ50-125	Φ125-Φ200
Output (kg/h)	100	200
Production speed (m/min)	1-3	0.5-2
Installed power (kw)	100	150
Overall dim. (L*W*H)(m)	16*2*1.4	20*2.3*1.4
