Brief introduction

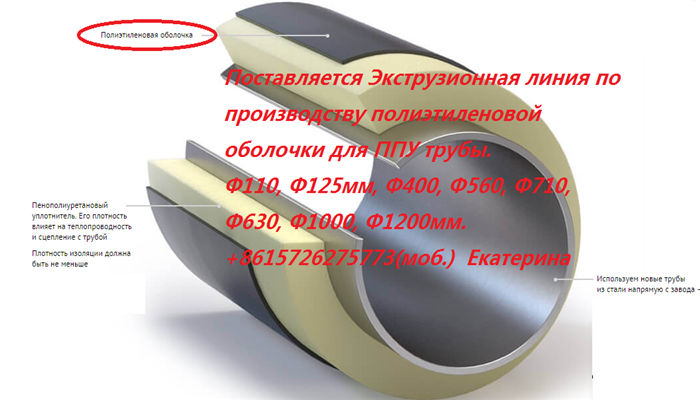

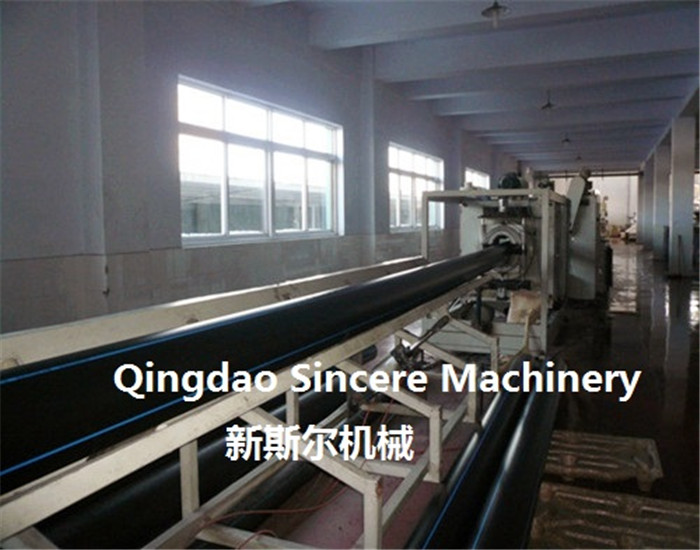

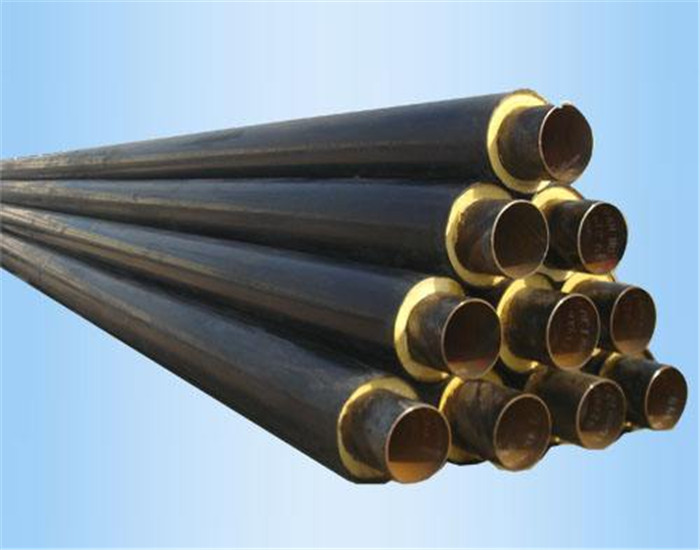

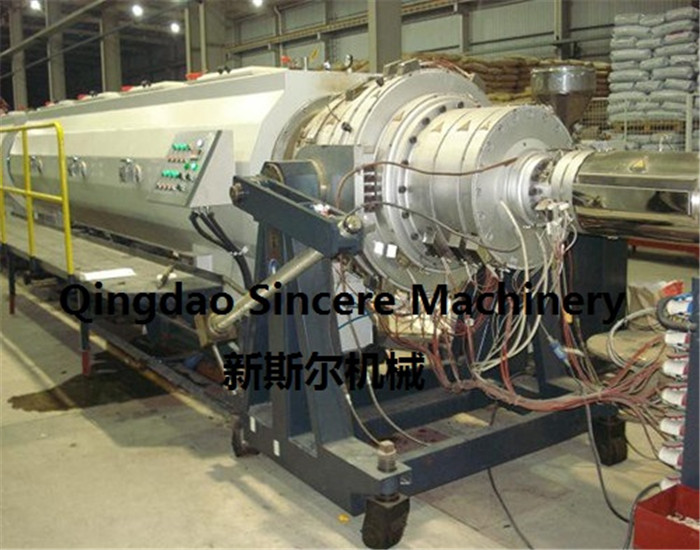

This PE pipe machine is mainly used in producing PE large diameter tube, and its products are mainly applied to the outer layer of heating pipeline (which its middle layer is the ammonia fat gathering and foaming level, and its inner layer is the steel pipe), besides that the units can produce the delivery pipe, the discharge pipe and so on. The units is mainly composed of the extruding machine, the nose, the cooling water trough, the tractor, the cutter, the card tube machine, the support and the electrical control department etc.

Main technical parameters

Pipe diameter	Main extruder	Power consumption
160-315mm	SJ90	110KW
250-400mm	SJ90	110KW
260-600mm	SJ90	110KW
670-1800mm	SJ90	110KW
800-2400mm	SJ120	150KW
1400-3000mm	SJ120	150KW
