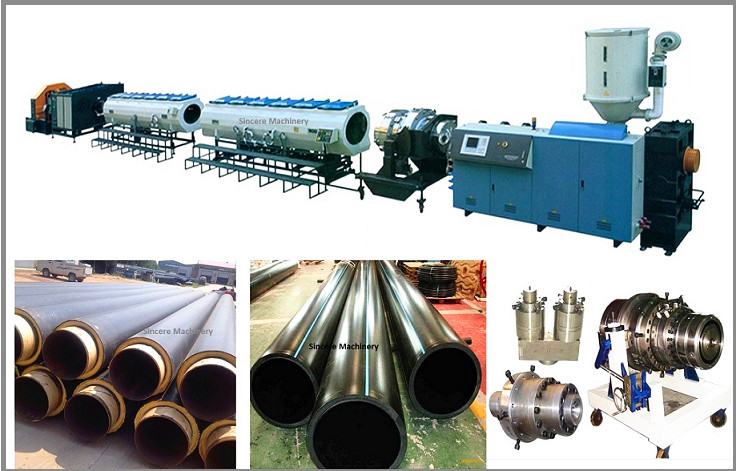

Large diameter HDPE pipe production line
- This Large diameter HDPE/MDPE fuel gas/water supply pipe extrusion line is mainly used for producing large diameter HDPE/MDPE pipe. The pipe has some excellent features such as heating resistant aging resistant high mechanical strength e
- Email:sales@sincere-extruder.com
Details

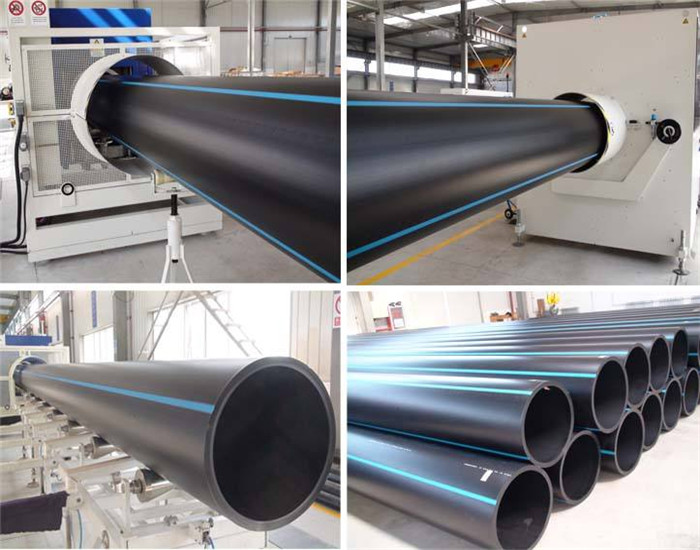

This Large diameter HDPE/MDPE fuel gas/water supply pipe extrusion line is mainly used for producing large diameter HDPE/MDPE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.
Production line features:
High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.
Vacuum calibration and spray water cooling tank made of stainless steel ensures precise calibration and fast cooling.
Adopts multi claws haul-off unit, speed adjusted by frequency inverter.
Equipped with planetary cutter. Be able to cut large diameter and thick wall pipe.
Equipped with pipe-making line.
This large diameter HDPE/MDPE fuel gas/water service pipe extrusion line is also called large diameter HDPE pipe production line, large diameter PE pipe extrusion machine, large diameter HDPE pipe production line, large diameter HDPE pipe producing machine, large diameter PE pipe making machine, large diameter HDPE pipe machine, large diameter PE pipe extruder, large diameter HDPE pipe manufacturing machine, large diameter HDPE pipe manufacturing plant, large diameter HDPE pipe production plant, etc.
The Largest Diameter Range can be produced to 800mm;
Technical parameters:
Model | XSPEG-75 | XSPEG-160 | XSPEG-250 | XSPEG-400 | XSPEG-500 | XSPEG-630 | XSPEG-800 |
Main extruder | XSSJ-50*33 | XSSJ-65*33 | XSSJ-65*33 | XSSJ-80*33 | XSSJ-90*33 | XSSJ-100*33 | XSSJ-120*33 |
Assistant extruder | XSSJ-30*25 | XSSJ-30*25 | XSSJ-30*25 | XSSJ-30*25 | XSSJ-30*25 | XSSJ-45*30 | XSSJ-45*30 |
Pipe dia. (mm) | Φ16-Φ75 | Φ63-Φ160 | Φ90-Φ250 | Φ200-Φ400 | Φ280-Φ500 | Φ350-Φ630 | Φ500-Φ800 |
Output (kg/h) | 150 | 250 | 300 | 500 | 750 | 900 | 1200 |
Production speed (m/min) | 1-16 | 0.5-12 | 0.2-4 | 0.2-2 | 0.1-1.5 | 0.06-1.5 | 0.05-1 |
Installed power (kw) | 80 | 150 | 200 | 260 | 360 | 430 | 600 |
