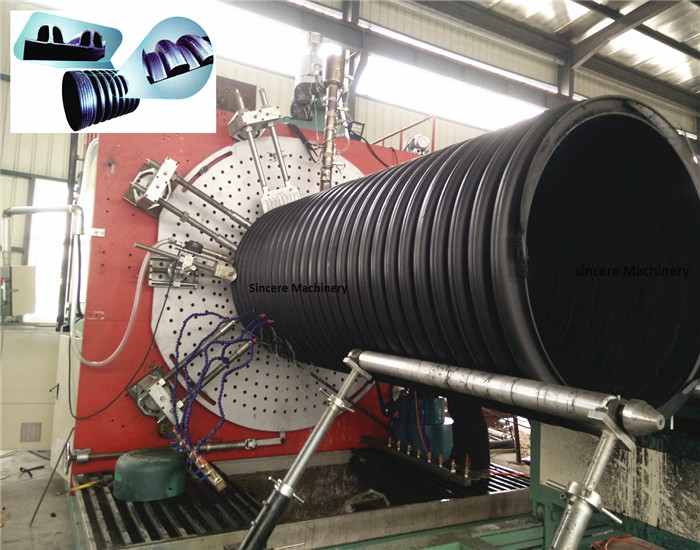

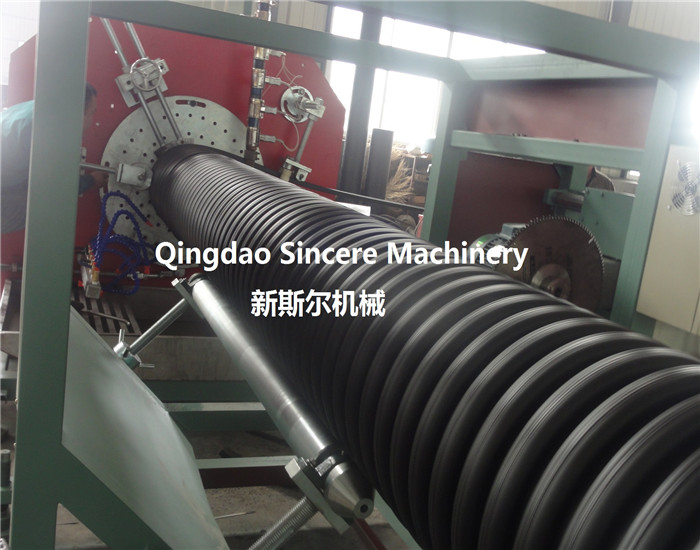

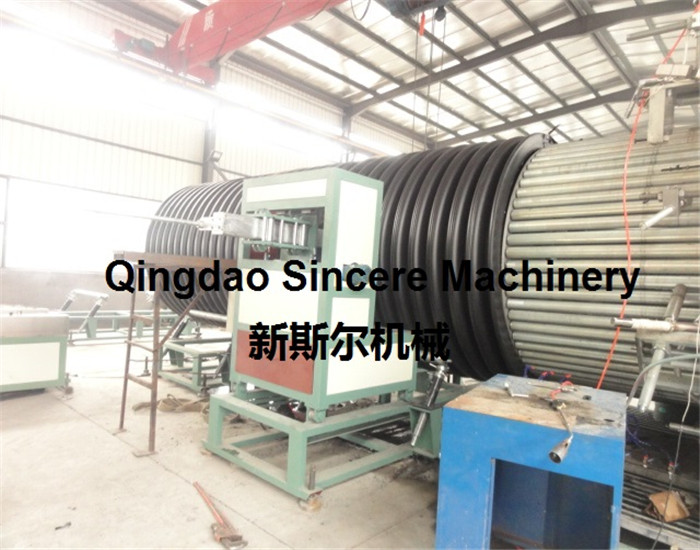

HDPE Rib Reinforced Corrugated type Spiral Pipe production line is a kind of new generation high performance
plastic spiral pipe line for large diameter buried drain pipe according to hollow wall winding pipe
 production technology by our company with the intellectual property. It can produce pipe size from Ø200~Ø3000mm
which is widely used in fields of civil water drain, wastewater drain.
The pipe could also be made by the recycled polyethylene material. These properties make it superior
advantages compared with other kinds of drainage pipe.
1) The investment is lower and the automatic control system is easy for operation and maintenance.

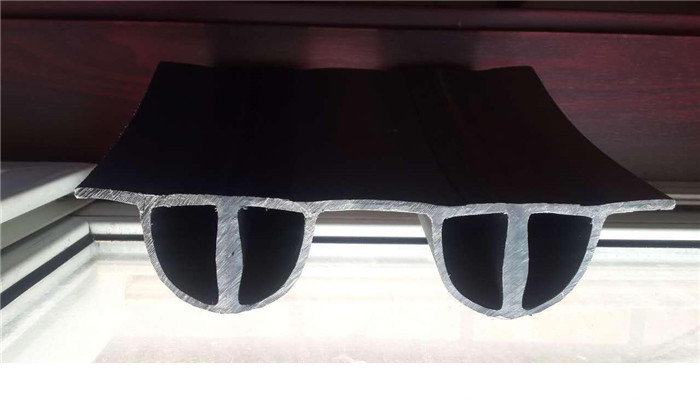

2) Adopt winding method by winding the semi-round two side circle profile
3) The inner PE-layer is Composited with the U-type pipe in melting condition. And they will never been
delaminated after spraying cooling forming, with good adhesion effect.
4)Adopting Electric-magnetic heating system which can save 40% to 60% electric power.
5)All Electric Part (breaker/motor/INCKO/Inverter) is Siemens/Schneider/Omron
6)Production Speed is 1-20m/min.
7)Max. Pipe Size: 2400mm.

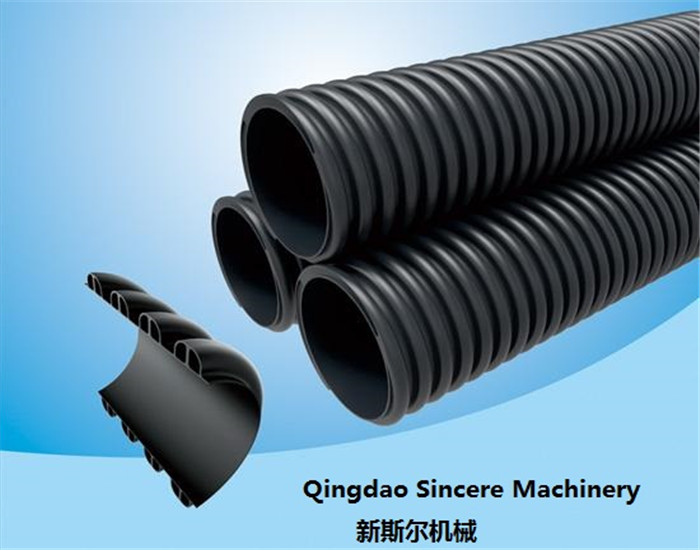

The features of PE Spiral Corrugated Pipe
1) Light weight-per-meter
2) Belling link, tight cementation
3) Pressure against, high strength
4) Anti-frozen and long service life (50 years )
5) Convenient construction

Technical parameters:

Model	Pipe Dia.(mm)	Extruder model	Production speed m/h	Max.out put kg/h	Total power kw	Overall dimension mm
XSWK-800	200-800	SJ-75*33(1 set) SJ-45/30(2 sets)	1-30	200	180	17000*8000*4000
XSWK-1600	600-1600	SJ-90*30(1 set) SJ-45/30(2 sets)	1-20	300	220	20000*10000*4800
XSWK-2000	800-200	SJ-90/33(1 set) SJ-65/30(2 sets)	1-18	400	260	22000*12000*5000
XSWK-3000	1500-3000	SJ-120/33(1 set) SJ-65/30（2sets）	1-10	500	310	25000*14000*5300
